SOLDAPULLT Hot Tip Desoldering Station (Requires clean and dry shop air 60-90 psi)
    Close SOLDAPULLT Hot Tip Desoldering Station (Requires clean and dry shop air 60-90 psi)

    SOLDAPULLT Hot Tip Desoldering Station (Requires clean and dry shop air 60-90 psi)

    Product Code: ZD505V


    Not yet rated | Write a Review

    Price: $1,132.60


    Product Description

    This station offers high performance desoldering while remaining cost-efficient for you. The station features a maximum heat transfer for heavy duty desoldering with no crossing circuitry so it remains ESD safe. Includes PM100 vacuum generator and HT500 hand tool with ZD13 tip

    Features

    • Outstanding performance and cost-efficient desoldering station ideal for heavy duty applications that require maximum heat transfer (requires clean and dry shop air, 60-90 psi)
    • Powerful 70W high output PTC element makes heavy multi-layer boards easy to desolder
    • Adjustable ergonomic hand tool design provides comfortable working angles
    • Easy to maintain and calibrate with external calibration feature
    • 18 month warranty
    • ESD safe

    Specs

    Dimensions: 5.0"W x 9.5"H x 9.0"D (127 mm x 241 mm x 229 mm)

    Power Requirements: 120V, 60Hz

    Power Rating: 20W-150W

    Weight: 4.1lbs/1.8kg

    Heater: 24V, 70W

    Temp Range: 400°F-800°F/205°C-427°C

    Temp Regulation: ±6°F/±3°C

    Head Length: na

    SMD: na

    Contents

    Package Contents:

    Part No.Description
    ZD505VSOLDAPULLT Shop air powered hot tip desoldering station includes PM100 vacuum generator and HT500 hand tool with ZD13 tip
    SH230Sponge holder with RS199 cleaning sponge

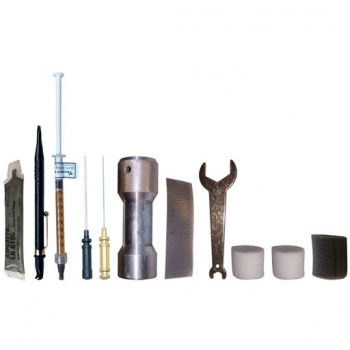

    Accessory Kit:

    Part No. Description
    WT623Tip wrench, dual open end, 1/4" & 3/4"
    WT619Tip wrench, for retaining sleeve
    WP556WIGAPRY mini screwdriver and calibration aid tool
    CS468Tip cleaning shaft for desoldering tips
    CS468-1Tip cleaning shaft for small desoldering tips
    AN112Anti-seize compound
    OL111O-Ring lube
    MS229Mica sheet for HT500
    AF629Felt filter set for AF110
    AF625Felt filter for HT500
    AF040Foam filter for AF110
